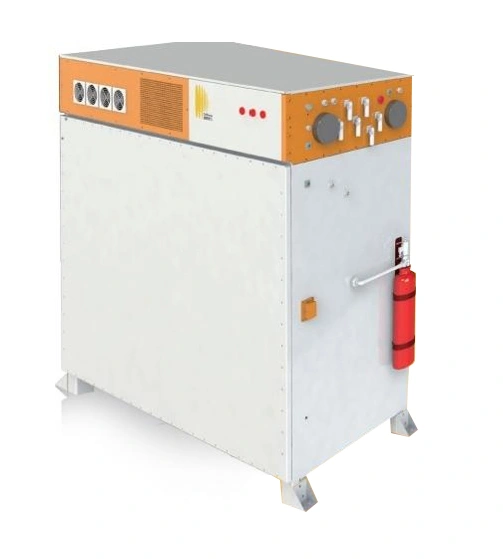

The (600-876VDC) energy storage cabinet is equipped with a local BMS (Battery Management System) that continuously monitors battery voltage and temperature. If any abnormalities are detected, it automatically disconnects the battery from the equipment to prevent damage.
The energy storage cabinet communicates in real time with the IPSCP cloud platform, which performs continuous system diagnostics. In the event of data irregularities or system faults, the cloud platform issues a shutdown command, ensuring immediate stop of on-site operations.
The system adopts an active fire suppression design with an independent compartment structure and an HFC-227ea (heptafluoropropane) fire extinguishing system. By monitoring temperature, smoke, and electrical anomalies, the fire protection system can automatically trigger in case of abnormal conditions, preventing damage to user facilities.
| Overall Dimensions | |

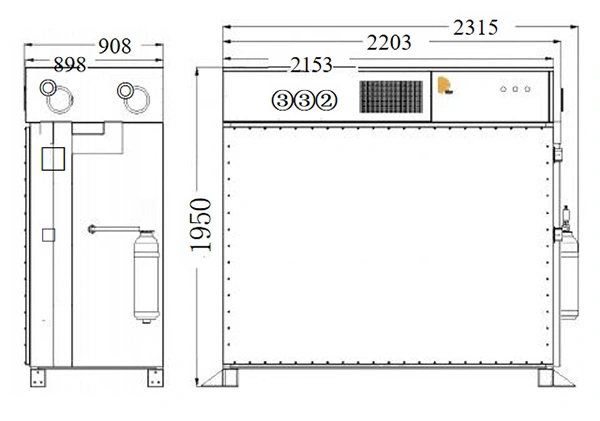

| Dimensions | 2150*900*1950(±10)mm |
| Weight | 2650(±50)kg |
| Protection Grade | IP67 |
| Battery System | |
| Battery Type | LiFeP04 |
| Rated Voltage | 768VDC |
| Voltage Range | 600V~876VDC |
| Nominal Capacity | 220kWh |
| Charge/Discharge Current | 150A (25℃)0.5C |
| Cooling Method | Forced Air Cooling |
| AC Side Output | |
| Rated Power | 120kW |
| Maximum Power | 132kW |
| Maximum Output Current | 200 A |
| Output Voltage | 380V |
| Grid Voltage Range | 350~440V |
| Grid Frequency Range | 45~55Hz |
| Power Factor | ±0.9 |
| Total Harmonic Distortion (THD) | < 3% (at rated power) |
