Aluminum Enclosures

Lightweight and corrosion-resistant enclosure solutions, including cast aluminum explosion-proof series

CABA offers cast aluminum electrical enclosures and junction boxes for electrical connections, terminal installation, and cable connections in hazardous areas. The product range includes IIB and IIC cast aluminum enclosures as well as CBGA Series cast aluminum junction boxes, with multiple standard sizes available. Enclosure dimensions, terminals, cable entries, and related configurations can be selected according to project requirements.

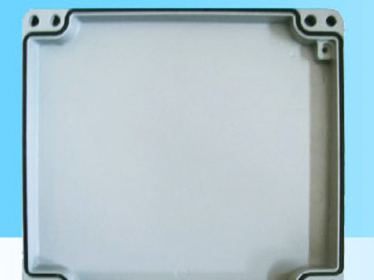

Cast Aluminum Explosion-Proof Enclosures

IIB Cast Aluminum Enclosures

The JXDB Series is available in a range of sizes for IIB hazardous-area applications, from compact junction boxes to larger terminal enclosures.

Applications

Suitable for electrical connections and terminal installation in Zone 1 and Zone 2 hazardous areas. Depending on project requirements, the enclosures can be used in Group IIA and IIB explosive gas atmospheres.

Size Range

Available in multiple W × H × D combinations, with current models ranging from 120 × 120 × 70 mm to 680 × 480 × 320 mm.

JXDB Series Selection Table

Model	W (mm)	H (mm)	D (mm)
JXDB07001	120	120	70
JXDB07501	165	165	75
JXDB08501	170	130	85
JXDB09001	193	131	90
JXDB09002	222	172	90
JXDB09003	300	170	90
JXDB09501	250	165	95
JXDB10001	220	170	100
JXDB10002	335	180	100
JXDB10003	380	180	100
JXDB10004	335	230	100
JXDB10005	340	290	100
JXDB10006	450	190	100
JXDB11001	265	245	110
JXDB11002	455	275	110
JXDB11003	520	370	110
JXDB11501	395	275	115
JXDB12001	340	270	120
JXDB12002	350	240	120
JXDB12003	420	220	120
JXDB12501	360	210	125
JXDB13001	415	270	130
JXDB13501	250	200	135
JXDB13502	363	193	135
JXDB13503	410	190	135
JXDB14001	325	170	140

Model	W (mm)	H (mm)	D (mm)
JXDB14002	450	310	140
JXDB14501	575	205	145
JXDB16001	455	355	160
JXDB16501	370	285	165
JXDB17001	410	360	170
JXDB18001	300	220	180
JXDB18501	365	365	185
JXDB18502	500	270	185
JXDB19001	290	290	190
JXDB19002	350	250	190
JXDB19003	385	245	190
JXDB19501	640	440	195
JXDB20001	505	365	200
JXDB20002	595	280	200
JXDB20003	700	245	200
JXDB20501	480	375	205
JXDB21501	350	300	215
JXDB22001	400	365	220
JXDB22002	440	330	220
JXDB22003	455	385	220
JXDB22501	445	445	225
JXDB22502	550	360	225
JXDB23001	355	355	230
JXDB26001	350	250	260
JXDB28501	410	235	285
JXDB32001	680	480	320

IIC Cast Aluminum Enclosures

JXDC Series is designed for hazardous areas requiring equipment suitable for the IIC gas group. The IIC cast aluminum enclosure supports electrical connections, terminal installation, and cable distribution. Multiple square enclosure sizes are available to suit different internal component and wiring-space requirements.

JXDC Series Selection Table

Model	W (mm)	H (mm)	D (mm)
JXDC14001	200	200	140
JXDC17001	250	250	170
JXDC17002	300	300	170
JXDC17003	400	400	170
JXDC29001	500	500	290

CBGA Series Cast Aluminum Junction Boxes

CBGA Series is available in increased-safety and intrinsically safe junction box configurations, as well as empty enclosures for hazardous-area applications. This junction box’s waterproof empty enclosures can be fitted with silicone sealing strips and external grounding devices, while terminal enclosures can also be configured with explosion-protected terminals and cable glands.

Available Configurations

CBGA Series is available in three configurations: increased-safety junction boxes, intrinsically safe junction boxes, and empty explosion-protected enclosures. Each configuration can be specified according to the required terminal count, cable entry arrangement, and installation requirements.
