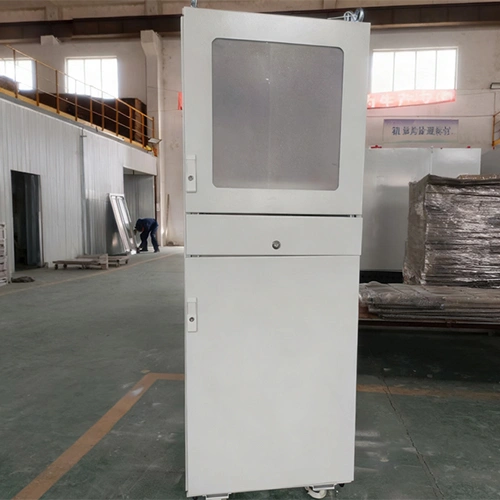

Floor-Mount Network Server Cabinet

Electrical Enclosures

CBPC Series

The flour-mount network server cabinet is built from cold-rolled steel with a reinforced structure that provides excellent rigidity and stability. It effectively shields internal PC equipment from external electromagnetic interference, ensuring reliable system operation.
The cabinet door is equipped with a secure locking mechanism to prevent unauthorized access, maintaining both data security and equipment integrity.
This cabinet is suitable for use in offices, industrial control centers, and data rooms, where it provides dependable housing for servers and network equipment.

Request a Quote

Features

The monitoring area is equipped with non-reflective safety glass, ensuring both visibility and operational safety.
The lower front cabinet door features a luxury handle lock, while the maintenance door uses a standard flat lock, combining functionality with ergonomic design.

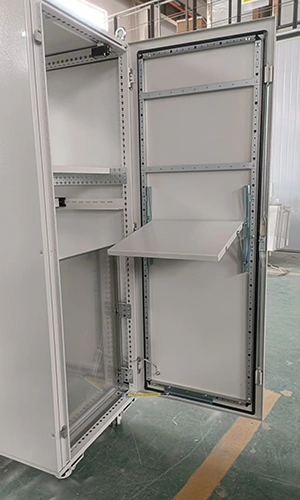

Includes a keyboard drawer (optional mouse tray or touchpad) for convenient operation.

General specifications

Material: Cold-rolled steel and aluminum alloy profiles, with optional stainless steel 304/316.
Surface Treatment: Phosphated primer with powder-coated exterior, color RAL7035; decorative strips in RAL5018 with horizontal texture; shelves in the same color as the cabinet.
Protection Level: IP54.

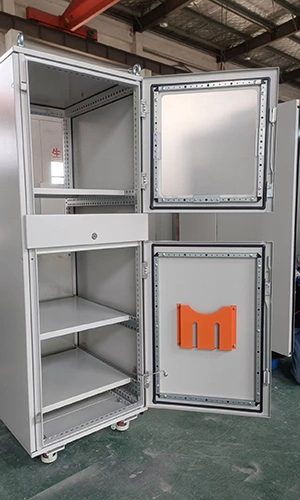

Configuration: Cabinet body, rear door panel, upper front glass door, lower front steel door, keyboard drawer, sealing strip, shelves, door locks, and optional casters.
Thickness: Frame 1.5 mm, door panel 2.0 mm.

Model	H	W	D
CEPC 1606060	1600	600	600
CEPC 1606070	1600	600	700
CEPC 1606080	1600	600	800
CEPC 1608060	1600	800	600
CEPC 1608070	1600	800	700
CEPC 1806060	1800	600	600
CEPC 1806070	1800	600	700
CEPC 1806080	1800	600	800
CEPC 1808060	1800	800	600
CEPC 1808070	1800	800	700
