Freestanding Multi-Bay Control Cabinet
Request a Quote

Electrical Enclosures

CBPZ Series

Freestanding Multi-Bay Control Cabinet

  • Material: Cold-rolled steel sheet
  • Surface Treatment: Phosphated primer with powder coating; colors available in RAL7032 and RAL7035; mounting plate in galvanized steel
  • Protection Level: IP54
  • Standard Configuration: Front door, rear panel, mounting plate, cabinet body, lock, sealing strip, and optional side panels
  • Steel Thickness: Frame (nine-fold steel profile) 1.5 mm; door 2.0 mm; rear and side panels 1.5 mm; mounting plate 2.5 mm
Features

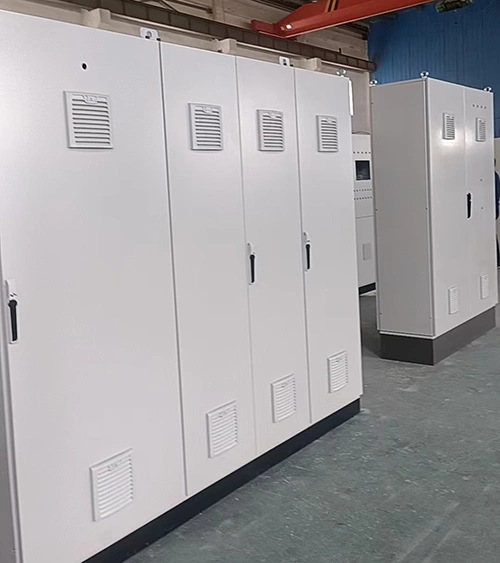

  • Multi-bay modular cabinet structure designed for combined installation.
  • Removable top and side panels enhance operational flexibility and ease of maintenance.
  • The door bottom clearance of approximately 25 mm ensures smooth and convenient opening.
  • The welded nine-fold profile frame provides exceptional strength and rigidity, meeting IP54 protection standards.

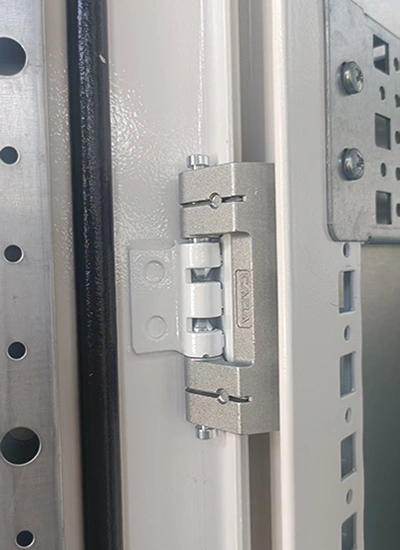

  • A reinforced door frame system allows the strengthening square tubes to be easily fixed and removed with screws.

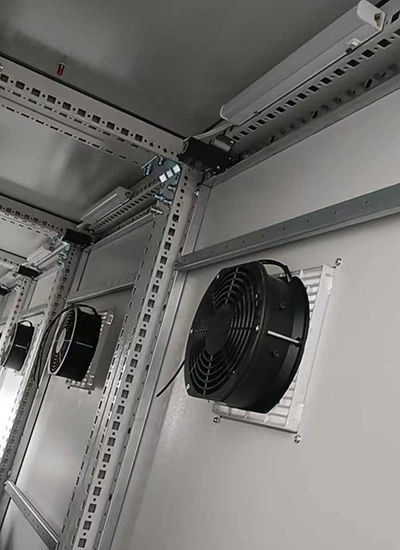

  • 25 mm modular spacing holes across the frame allow for flexible and universal mounting of components.

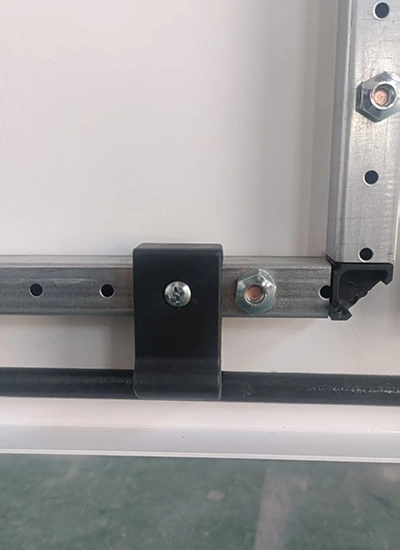

  • The galvanized mounting plate can be inserted from the front using plastic sliders along guide rails; both sides have U-shaped folded edges for greater stability and easier handling.
Freestanding Multi-Bay Control Cabinet
Freestanding Multi-Bay Control Cabinet
Freestanding Multi-Bay Control Cabinet
Products
Solution for commercial &industrial
Power Distribution Panels
Power Distribution Panels
Industrial Automation Control Panels
Industrial Automation Control Panels
Energy Storage Cabinets
Energy Storage Cabinets
Discover Our Products

Each cabinet is manufactured from high-quality cold-rolled steel and produced under strict compliance with international and domestic standards. Every unit undergoes thorough material inspection, in-process quality checks, and final performance testing before delivery.

Yes. The cabinet supports a wide range of power configurations, with the main circuit rated up to 400 A, making it suitable for most high-power equipment applications.

The lead time depends on the complexity of the customization. On average, approximately seven working days are required to complete a tailored solution.
