Electrical Enclosures

CBKL Series

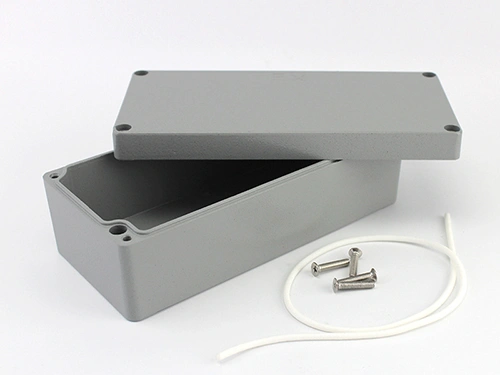

Carbon Steel/Stainless Steel Junction Box

The junction box offers a wide range of sizes and configurations to accommodate different project requirements for wiring space and terminal capacity. Whether used in residential electrical systems, industrial machinery, or commercial building installations, it provides a flexible and reliable solution for protecting electrical connections across diverse applications.

Request a Quote
Features
  • The cabinet uses polyurethane foamed sealing technology, with a one-piece molded gasket. The cover is fastened with screws and plastic sleeves, achieving a protection level up to IP56.
  • Equipped with internal guide rail supports, rear wall-mounting holes, and mounting brackets for easy installation.
  • Material Thickness: High-quality cold-rolled carbon steel (1.5–2.0 mm); body 1.2–1.5 mm, door 1.5 mm, mounting plate 2.5 mm; optional stainless steel 304/316 available.
  • Surface Treatment: Galvanized (zinc coating ≥ 8 μm), overall thickness 1.5–2.5 mm.
  • Color Options: RAL7032, RAL7035.
  • Protection Level: IP56.

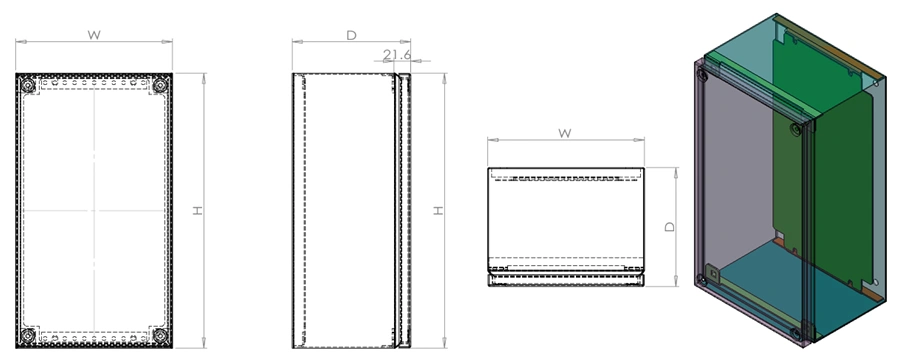

Specifications
Carbon Steel/Stainless Steel Junction Box
Model Dimensions Model Dimensions
H (mm) W (mm) D (mm) H (mm) W (mm) D (mm)
CBKL15158 150 150 80 CBKL403012 400 300 120
CBKL151512 150 150 120 CBKL404012 400 400 120
CBKL20158 200 150 80 CBKL404012-J 400 400 120
CBKL201512 200 150 120 CBKL502012 500 200 120
CBKL20208 200 200 80 CBKL502012-J 500 200 120
CBKL202012 200 200 120 CBKL503012 500 300 120
CBKL30158 300 150 80 CBKL503012-J 500 300 120
CBKL301512 300 150 120 CBKL60208 600 200 80
CBKL301512-J 300 150 120 CBKL602012 600 200 120
CBKL30208 300 200 80 CBKL602012-J 600 200 120
CBKL302012 300 200 120 CBKL603012 600 300 120
CBKL302012-J 300 200 120 CBKL603012-J 600 300 120
CBKL303012 300 300 120 CBKL604012 600 400 120
CBKL303012-J 300 300 120 CBKL604012-J 600 400 120
CBKL401512 400 150 120 CBKL802012 800 200 120
CBKL40208 400 200 80 CBKL802012-J 800 200 120
CBKL402012 400 200 120 CBKL804012 800 400 120
CBKL402012-J 400 200 120 CBKL804012-J 800 400 120
Products
Solution for commercial &industrial

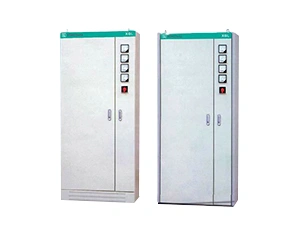

Power Distribution Panels
Power Distribution Panels

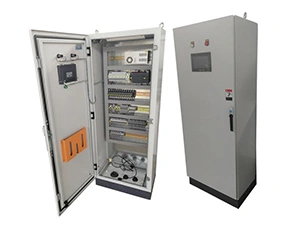

Industrial Automation Control Panels
Industrial Automation Control Panels

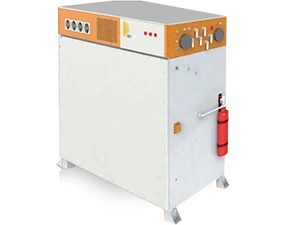

Energy Storage Cabinets
Energy Storage Cabinets
Discover Our Products

Yes. Special dimensions can be customized, with a minimum size of 100×80×50 mm. Customization does not affect the protection performance, as the sealing structure continues to use the polyurethane foamed gasket. The lid and body are re-fitted precisely to maintain the IP56 protection level and ensure compliance with certification standards.

It is recommended to use 316 stainless steel, which contains molybdenum that significantly enhances resistance to chloride ion corrosion, ensuring longer service life in marine or high-salinity environments.
