Electrical Enclosures

CBAH Series

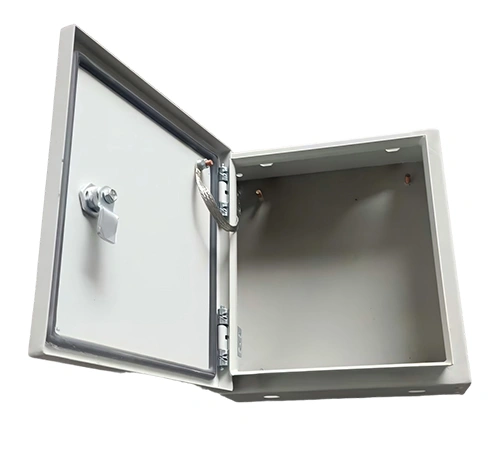

Wall-Mounted Enclosure

  • Cabinet Material: High-quality cold-rolled steel or stainless steel.
  • Thickness: Cabinet 1.2–2.0 mm, door 1.5–2.0 mm; mounting plate 2.0 mm (galvanized); rain shield 1.2–1.5 mm.
  • Protection Level: IP65.
  • Surface Treatment: Phosphating followed by outdoor weather-resistant powder coating (RAL7032).
  • Design: Available in multiple sizes. The front door can be installed with screws or fitted with hinges and a door lock for secure closure.
Applications

Outdoor control enclosures are widely used for electrical equipment protection and control under harsh environmental conditions, including:

  • Urban power distribution boxes and outdoor electrical control systems
  • Industrial automation equipment control
  • Traffic signal control and telecommunication base station equipment
  • Outdoor monitoring systems in water treatment, power, hydraulic, and petrochemical industries
Specifications
Model Dimensions Model Dimensions
H (mm) W (mm) D (mm) H (mm) W (mm) D (mm)
CBAH 2020 15 200 200 150 CBAH 4030 25 400 300 250
CBAH 2520 15 250 200 150 CBAH 4040 25 400 400 250
CBAH 3020 15 300 250 150 CBAH 5030 25 500 300 250
CBAH 3030 15 300 300 150 CBAH 5040 25 500 500 250
CBAH 4030 15 400 300 150 CBAH 5050 25 600 400 250
CBAH 4040 15 400 400 150 CBAH 6040 25 600 500 250

The above table lists the standard reference dimensions. For non-standard or customized enclosures, production can be tailored according to specific customer requirements.
