Electrical Enclosures

CBAK Series

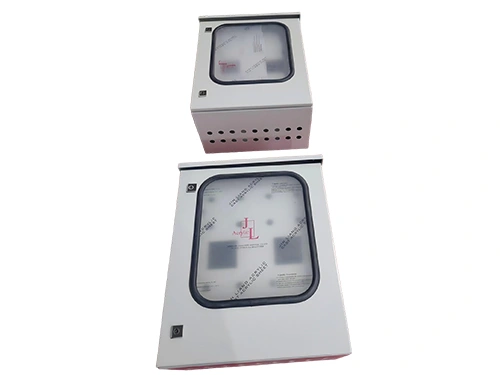

Wall-Mounted Enclosure

  • The wall-mounted design saves floor space and is ideal for compact installation environments.
  • Constructed from cold-rolled steel, with IP65-rated protection against dust and water while maintaining efficient heat dissipation for diverse environments.
  • The modular internal layout allows adjustable brackets, and the transparent viewing window facilitates equipment monitoring and simple wiring maintenance.
Specifications
Model Dimensions (mm)
H W D
CBAK7040 20 700 400 200
CBAK7050 20 700 500 200
CBAK8050 20 800 500 200
CBAK8060 20 800 600 200
CBAK8050 25 800 500 250
CBAK8060 25 800 600 250
CBAK8050 30 800 500 300
CBAK8060 30 800 600 300
CBAK9050 25 900 500 250
CBAK9060 25 900 600 250
CBAK9050 30 900 500 300
CBAK9060 30 900 600 300
CBAK10060 30 1000 600 300
CBAK10070 30 1000 700 300
CBAK12070 30 1200 700 300
CBAK12080 30 1200 800 300
CBAK12090 30 1200 900 300
Process Details
  • The inner side of the door is equipped with welded mounting strips and pre-drilled holes compatible with M4 fasteners, enabling easy installation.
  • The polyurethane foamed gasket ensures reliable sealing performance.
  • The door uses pin-type hinges and opens up to 110° for convenient access.
  • The grooved cabinet edges prevent dust and water ingress and work seamlessly with the gasket to form a tight seal.
  • The back panel includes pre-drilled mounting holes and wall-mounting brackets for simple and secure installation.
  • The door can be installed to open from either the left or right side, providing flexibility during on-site installation.
  • Color options: RAL7032 and RAL7035.
  • Material: Cold-rolled steel, optional stainless steel 304/316.
  • Thickness: Door 1.5–2.0 mm, cabinet body 1.2–1.5 mm, mounting plate 2.5 mm (galvanized).
Standard Configuration
  • One mounting plate
  • Two door mounting strips
  • One set of wall-mounting brackets
  • Bottom cable entry gland plate
  • Basic protective packaging
