CBAE Series

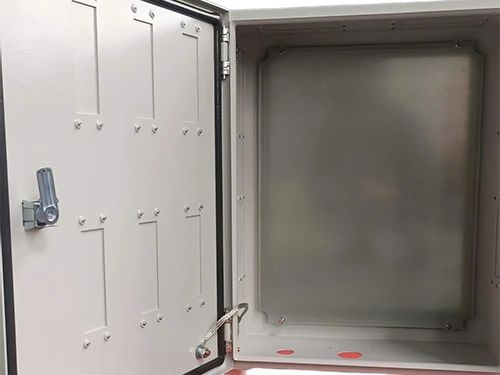

Wall-Mounted Enclosure
- The back panel of the cabinet is pre-punched with mounting holes and fitted with wall-mounting brackets for quick and easy installation.
- The door is equipped with vertical welded mounting strips on both sides, pre-drilled for M4 self-tapping screws, allowing convenient component installation.
- The door sealing strip works in combination with the grooved cabinet edges, effectively preventing dust and water ingress to provide reliable internal protection.
- The door is mounted with pin-type hinges, allowing a 110° opening angle, and secured with a single-point lock.
- The door can be installed to open from either the left or right side, offering flexibility for on-site installation.
- Color options: RAL7032 and RAL7035.
- Material: Cold-rolled steel; door thickness 1.5–2.0 mm, cabinet body 1.2–1.5 mm, mounting plate 2.5 mm (galvanized).
- Protection Level: IP65.
Specifications
| Model | Dimensions | ||
| H(mm) | W(mm) | D(mm) | |
| | 200 | 200 | 150 |
| | 250 | 200 | 150 |
| | 300 | 200 | 150 |
| | 300 | 250 | 150 |
| | 300 | 300 | 150 |
| | 400 | 300 | 200 |
| | 400 | 400 | 200 |
| | 500 | 300 | 200 |
| | 500 | 400 | 200 |
| | 600 | 400 | 250 |
| | 600 | 500 | 250 |
| | 700 | 500 | 300 |
| | 800 | 600 | 300 |
Applications
Wall-mounted enclosures are widely used in industrial, commercial, and outdoor environments for the protection and control of electrical, electronic, and computer equipment, including:
- Industrial automation control systems, such as PLCs, frequency converters, and touch screen devices.
- Telecommunication and network terminal installations in wall-mounted configurations.
- Power distribution, traffic signal control, water treatment, and municipal monitoring systems.
Standard Configuration
- One mounting plate
- Two door mounting strips
- One set of wall-mounting brackets
- Bottom cable entry gland plate
- Basic protective packaging
