Electrical Enclosures

CBES Series

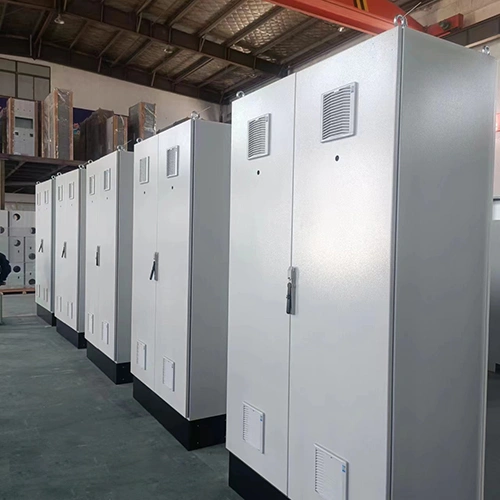

Freestanding Enclosure

  • Protection Level: IP55 (according to GB 4208 / IEC 60529), suitable for outdoor or humid environments.
  • The main frame is constructed with a five-fold steel profile through full welding, ensuring high structural strength and cabinet rigidity.
  • The square-tube reinforcement bar strengthens the door panel and can also be used to fix electrical components in combination with the door mounting strip.

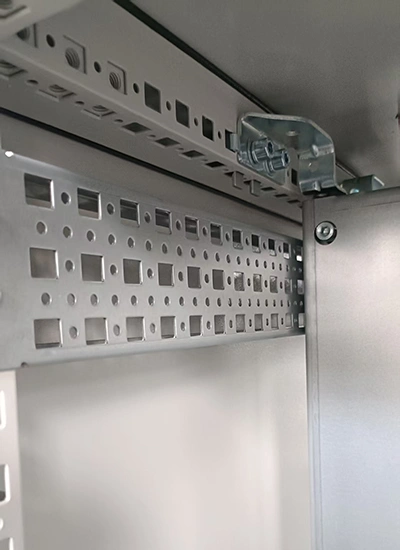

  • 25 mm modular holes on the frame provide flexibility and compatibility for component installation.

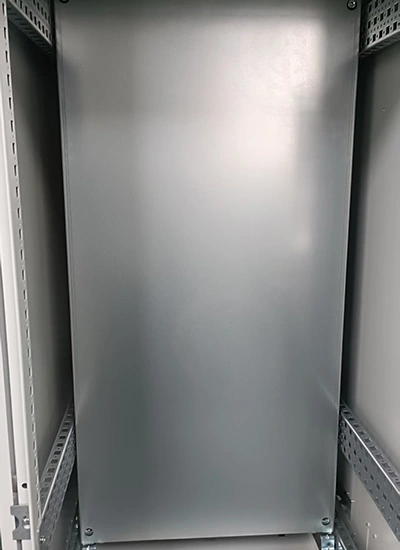

  • The galvanized mounting plate is equipped with nylon sliders, allowing front insertion along the guide rails. Both sides feature U-shaped folded edges for better rigidity and easier handling.
Specifications
Model Dimensions Model Dimensions
H (mm) W (mm) D (mm) H (mm) W (mm) D (mm)
CBES 10060 30 1000 600 300 CBES 18080 30 1800 800 300
CBES 10060 40 1000 600 400 CBES 18080 40 1800 800 400
CBES 10080 30 1000 800 300 CBES 18080 50 1800 800 500
CBES 10080 40 1000 800 400 CBES 18080 60 1800 800 600
CBES 12080 30 1200 800 300 CBES 180100 40 1800 1000 400
CBES 12080 40 1200 800 400 CBES 180100 50 1800 1000 500
CBES 120100 30 1200 1000 300 CBES 180100 60 1800 1000 600
CBES 120100 40 1200 1000 400 CBES 180100 80 1800 1000 800
CBES 120120 30 1200 1200 300 CBES 180120 40 1800 1200 400
CBES 120120 40 1200 1200 400 CBES 180120 50 1800 1200 500
CBES 14060 30 1400 600 300 CBES 180120 60 1800 1200 600
CBES 14060 40 1400 600 400 CBES 180120 80 1800 1200 800
CBES 14080 30 1400 800 300 CBES 20060 30 2000 600 300
CBES 14080 40 1400 800 400 CBES 20060 40 2000 600 400
CBES 140100 30 1400 1000 300 CBES 20060 50 2000 600 500
CBES 140100 40 1400 1000 400 CBES 20060 60 2000 600 600
CBES 140120 30 1400 1200 300 CBES 20080 30 2000 800 300
CBES 140120 40 1400 1200 400 CBES 20080 40 2000 800 400
CBES 16060 30 1600 600 300 CBES 20080 50 2000 800 500
CBES 16060 40 1600 600 400 CBES 20080 60 2000 800 600
CBES 16080 30 1600 800 300 CBES 20080 80 2000 800 800
CBES 16080 40 1600 800 400 CBES 200100 30 2000 1000 300
CBES 160100 30 1600 1000 300 CBES 200100 40 2000 1000 400
CBES 160100 40 1600 1000 400 CBES 200100 50 2000 1000 500
CBES 160120 30 1600 1200 300 CBES 200100 60 2000 1000 600
CBES 160120 40 1600 1200 400 CBES 200100 80 2000 1000 800
CBES 18060 30 1800 600 300 CBES 200120 40 2000 1200 400
CBES 18060 40 1800 600 400 CBES 200120 50 2000 1200 500
CBES 18060 50 1800 600 500 CBES 200120 60 2000 1200 600
CBES 18060 60 1800 600 600 CBES 200120 80 2000 1200 800
Freestanding Enclosure
Freestanding Enclosure
Freestanding Enclosure
Configurations
  • One galvanized mounting plate
  • Two door mounting strips
  • One document pocket
  • Two mounting vertical beams
  • Single front door with rear panel
  • Protection Level: IP55
  • Surface Treatment: Phosphated primer with external powder coating
  • Color: RAL7032 / RAL7035
  • Material: Cold-rolled steel, optional stainless steel 304
  • Thickness: Frame (five-fold steel profile) 1.5 mm; door 2.0 mm; galvanized mounting plate 2.5 mm
Products
Solution for commercial &industrial
Power Distribution Panels
Power Distribution Panels
Industrial Automation Control Panels
Industrial Automation Control Panels
Energy Storage Cabinets
Energy Storage Cabinets
Discover Our Products

Yes. The cabinet shelves have multiple adjustable positions, allowing flexible arrangement of installed equipment.

The protection rating is IP54, which provides effective resistance against dust and splashing water. These cabinets can be used in general outdoor environments, but for long-term exposure to harsh conditions such as heavy rain or strong dust, additional protective measures are recommended.

Yes. Customization services are available to meet specific dimensional and configuration requirements based on customer needs.
