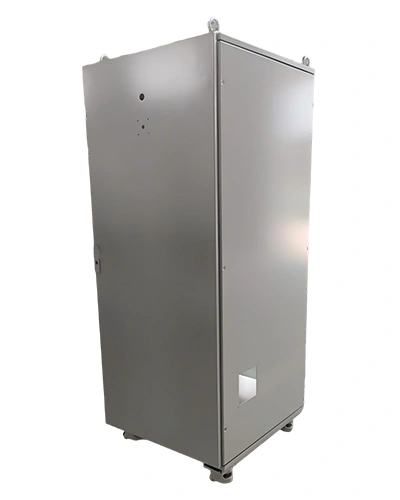

Control Panel Enclosure (9-Fold Steel Profile)

Certifications: CE Certification, Protection Level IP65

The PS Nine-Bend Profile Cabinet is made of high-quality cold-rolled steel sheet, precisely roll-formed through nine folds into shape. The cabinet adopts a fully welded main frame structure, which provides high strength and excellent rigidity, ensuring overall stability and durability. It can support a load of 200–500 kg, making it suitable for medium-sized servers or equipment-dense environments that require strong structural performance and reliable load-bearing capacity.

Request a Quote
Features
  • Cable Management The bottom cable entry area includes three interchangeable cover plates that can be repositioned freely. This design simplifies cable routing and entry, keeping internal wiring neat and organized.
  • Color Options The standard cabinet colors are RAL7032 and RAL7035. Other colors can be customized according to customer requirements.
  • Modular Structure The uprights and crossbeams are connected by snap-fit or bolted joints, supporting modular installation. The internal mounting beam design is flexible, allowing adjustments to suit different equipment layouts and installation needs.
  • Door Design The bottom edge of the door is raised about 25 mm from the ground. Circular holes are positioned at 25 mm intervals, enhancing door rigidity and allowing the installation of wire bundles or electrical components. The square-tube reinforcement bar on the door is screw-fixed for easy removal.
  • Removable Panels The side, top, and bottom panels are secured with screw fasteners, facilitating easy disassembly, installation, and on-site debugging of internal equipment.
  • Protection Rating The cabinet offers a protection level of up to IP55 or higher, effectively preventing dust and water ingress and ensuring stable operation of internal devices under harsh environmental conditions.
Applications

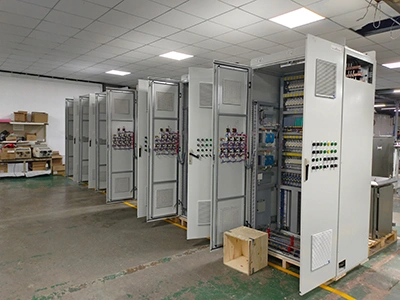

Industrial Automation Control Centers

Used in industrial automation systems for mounting PLCs, frequency converters, touch screens, and other control devices, providing stable and reliable support for automation control systems.

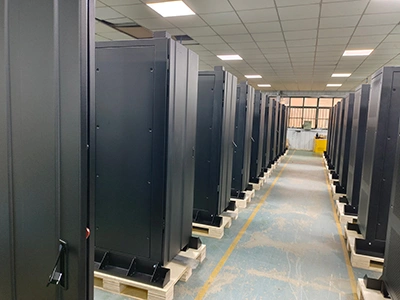

Applications
Applications

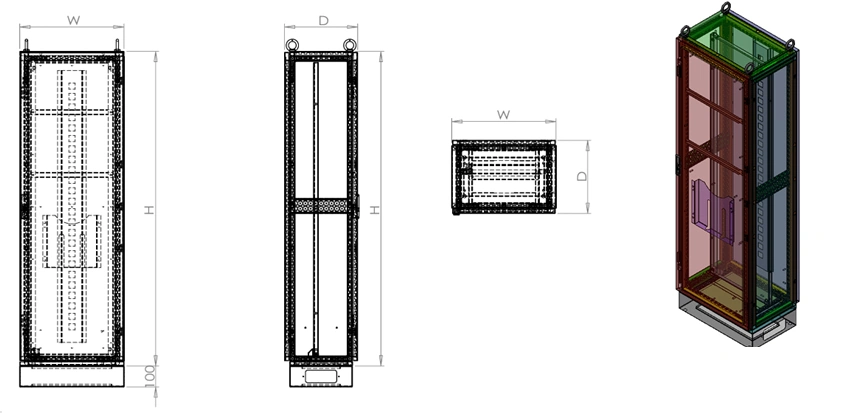

Specifications
Control Panel Enclosure (5-Fold Steel Profile)
Model Dimensions (mm) Model Dimensions (mm)
H W D H W D
CBPS 16060 40 1600 600 400 CBPS 20080 40 2000 800 400
CBPS 16060 50 1600 600 500 CBPS 20080 50 2000 800 500
CBPS 16060 60 1600 600 600 CBPS 20080 60 2000 800 600
CBPS 16080 40 1600 800 400 CBPS 20080 80 2000 800 800
CBPS 16080 50 1600 800 500 CBPS 200100 40 2000 1000 400
CBPS 16080 60 1600 800 600 CBPS 200100 50 2000 1000 500
CBPS 16080 80 1600 800 800 CBPS 200100 60 2000 1000 600
CBPS 18060 40 1800 600 400 CBPS 200100 80 2000 1000 800
CBPS 18060 50 1800 600 500 CBPS 200120 40 2000 1200 400
CBPS 18060 60 1800 600 600 CBPS 200120 50 2000 1200 500
CBPS 18080 40 1800 800 400 CBPS 200120 60 2000 1200 600
CBPS 18080 50 1800 800 500 CBPS 200120 80 2000 1200 800
CBPS 18080 60 1800 800 600 CBPS 22060 40 2200 600 400
CBPS 18080 80 1800 800 800 CBPS 22060 50 2200 600
Standard Configuration
  • One galvanized mounting plate
  • Two door mounting strips
  • One document pocket
  • Two mounting vertical beams
  • One interior light and switch set
  • Single front door with rear panel

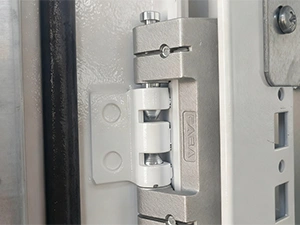

Hinge Hinge

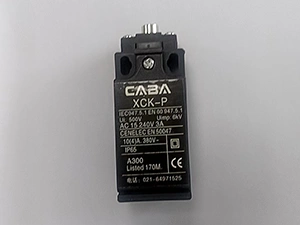

Limit Switch Limit Switch

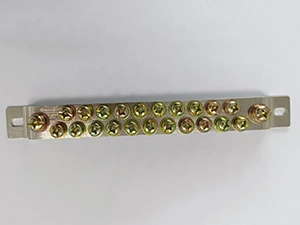

Copper Busbar Copper Busbar

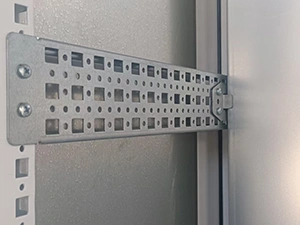

PVFU LK Reinforcement Rib PVFU LK Reinforcement Rib
Products
Solution for commercial &industrial
Power Distribution Panels
Power Distribution Panels
Industrial Automation Control Panels
Industrial Automation Control Panels
Energy Storage Cabinets
Energy Storage Cabinets
Discover Our Products

The PS-type cabinet is a nine-fold enclosure with a frame structure. It features removable side panels, supports cabinet coupling, and offers higher load capacity, though it is slightly more expensive.
The ES-type cabinet, also known as the five-fold cabinet, is integrally formed with non-removable side panels. It cannot be coupled and is generally more cost-effective.

Because the PS-type cabinet has removable side panels, its sealing performance is slightly lower than that of the ES-type cabinet, making it less suitable for applications requiring high sealing levels.

The bottom-support installation method is recommended. Compared to traditional mounting approaches, it saves labor time and improves installation efficiency.
