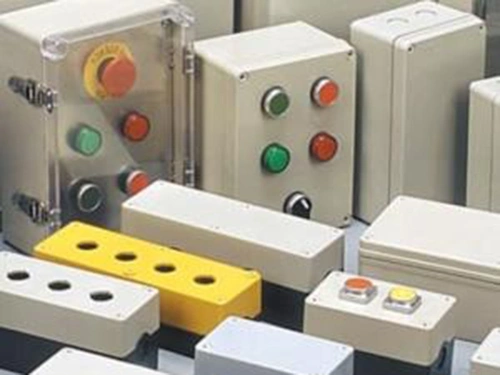

ABS/PC Junction Box

Electrical Enclosures

CBBOX Series

Made from a composite of ABS (Acrylonitrile Butadiene Styrene) and PC (Polycarbonate), this junction box combines the advantages of both materials, offering high mechanical strength, weather resistance, impact resistance, and excellent electrical insulation. These features make it suitable for a wide range of industrial and commercial environments.

Request a Quote

Features

Variety of Sizes: Available in multiple dimensions to meet diverse installation space and component layout needs. From small electronic connections to large industrial control systems.
Protection Level: Rated IP65, providing strong resistance against dust and water ingress.
Door Opening Options: Designed with flexible door orientations, including side-opening and top-opening configurations.
Power Characteristics: The junction box itself does not perform power conversion but serves as a safe housing for electrical wiring connections.

Custom Options

Size Customization: In addition to standard models, specific dimensions can be customized to perfectly match installation space and application requirements.
Color Customization: The standard color is gray, but other colors (e.g., white) can be customized for aesthetic or identification purposes.
Internal Structure Customization: Internal mounting plate layouts, rail positions, and cutout dimensions can be tailored to customer wiring and installation needs.
Protection Level Customization: For extreme environments, the enclosure can be specially engineered to increase the protection rating beyond the standard IP65, ensuring reliable operation under harsher conditions.

Specifications

Series Number	Model	Specifications (W × H × D) (mm)	Packaging (pcs/box)
060 Series	CB-AGS-080806	80×80×60 (Gray Cover)	180
070 Series	CB-AGS-081170	80×110×70 (Gray Cover)	100
	CB-AGS-081370	80×130×70 (Gray Cover)	100
	CB-AGS-081870	80×180×70 (Gray Cover)	50
	CB-AGS-082570	80×250×70 (Gray Cover)	50
	CB-ATS-081170	80×110×70 (Transparent Cover)	100
	CB-ATS-081370	80×130×70 (Transparent Cover)	100
	CB-ATS-081870	80×180×70 (Transparent Cover)	50
	CB-ATS-082570	80×250×70 (Transparent Cover)	50
075 Series	CB-AGS-1010075	100×100×75 (Gray Cover)	100
	CB-AGS-1212075	125×125×75 (Gray Cover)	80
	CB-AGS-1217075	125×175×75 (Gray Cover)	60
	CB-ATS-1010075	100×100×75 (Transparent Cover)	100
	CB-ATS-1212075	125×125×75 (Transparent Cover)	80
	CB-ATS-1217075	125×175×75 (Transparent Cover)	60
095 Series	CB-AGS-1417095	140×170×95 (Gray Cover)	60
	CB-AGS-1423095	140×230×95 (Gray Cover)	40
	CB-ATS-1417095	140×170×95 (Transparent Cover)	60
	CB-ATS-1423095	140×230×95 (Transparent Cover)	40
100 Series	CB-AGS-121210	125×125×100 (Gray Cover)	48
	CB-AGS-121710	125×175×100 (Gray Cover)	30
	CB-AGS-152010	150×200×100 (Gray Cover)	40
	CB-AGS-152510	150×250×100 (Gray Cover)	32
	CB-AGS-202010	200×200×100 (Gray Cover)	30
	CB-ATS-152010	150×200×100 (Transparent Cover)	40
	CB-ATS-152510	150×250×100 (Transparent Cover)	32
	CB-ATS-202010	200×200×100 (Transparent Cover)	30
130 Series	CB-AGS-192813	190×280×130 (Gray Cover)	20
	CB-AGS-282813	280×280×130 (Gray Cover)	12
	CB-AGS-283813	280×380×130 (Gray Cover)	10
	CB-AGS-223413	220×340×130 (Gray Cover)	10
	CB-AGS-193813	190×380×130 (Gray Cover)	18
	CB-AGS-202013	200×200×130 (Gray Cover)	30
	CB-AGS-152513	150×250×130 (Gray Cover)	24
	CB-AGS-152013	150×200×130 (Gray Cover)	36
	CB-ATS-192813	190×280×130 (Transparent Cover)	20
	CB-ATS-282813	280×280×130 (Transparent Cover)	12
	CB-ATS-283813	280×380×130 (Transparent Cover)	10
	CB-ATS-223413	220×340×130 (Transparent Cover)	10
	CB-ATS-193813	190×380×130 (Transparent Cover)	18
	CB-ATS-202013	200×200×130 (Transparent Cover)	30
	CB-ATS-152513	150×250×130 (Transparent Cover)	24
	CB-ATS-152013	150×200×130 (Transparent Cover)	36
