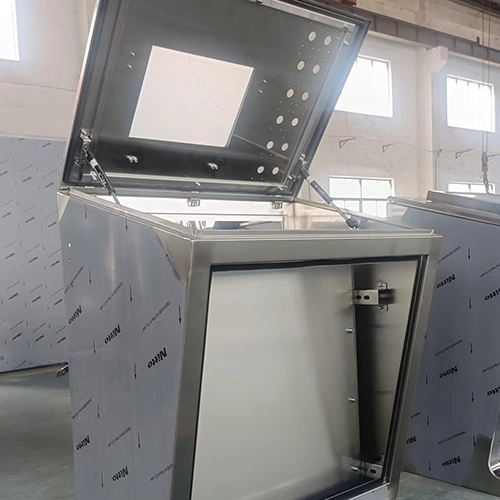

Freestanding Operator Console Enclosure (Piano Type Enclosure)

The cabinet is made of 304 stainless steel, precisely formed through advanced bending and welding processes, providing a durable and rigid structure. The piano-style design offers an ergonomic operating surface, making it easy for operators to monitor and control equipment. The rear access door simplifies maintenance and inspection operations.

Request a Quote
Structural Features
  • The front door and control panel can both be opened for easy installation and maintenance.
  • Equipped with upper and lower mounting plates, ensuring convenient assembly and component installation.
  • The inner sides of the door and control panel are fitted with welded mounting strips and pre-drilled holes (M4/M5 compatible) for flexible arrangement of accessories and organized cable management.
  • The grooved waterproof edges work together with a polyurethane foamed sealing strip, ensuring IP54-rated protection against dust and water ingress.
Specifications
Model Dimensions Model Dimensions
H (mm) W (mm) D (mm) H (mm) W (mm) D (mm)
CBAP 106010 1000 600 500-1000 CBAP 121010 1200 1000 500-1000
CBAP 108010 1000 800 500-1000 CBAP 121210 1200 1200 500-1000
CBAP 101010 1000 1000 500-1000 CBAP 146010 1400 600 500-1000
CBAP 101210 1000 1200 500-1000 CBAP 148010 1400 800 500-1000
CBAP 126010 1200 600 500-1000 CBAP 141010 1400 1000 500-1000
CBAP 128010 1200 800 500-1000 CBAP 141210 1400 1200 500-1000
Standard Configurations
  • One galvanized mounting plate
  • Front double doors with rear panel (600 mm width models feature a single front door)
  • Top cover support
  • Material: Stainless steel, with optional carbon steel available
  • Door Thickness: 2.0 mm
  • Cabinet Body Thickness: 1.5 mm
  • Mounting Plate Thickness: 2.5 mm (galvanized steel)
Products
Solution for commercial &industrial
Power Distribution Panels
Power Distribution Panels
Industrial Automation Control Panels
Industrial Automation Control Panels
Energy Storage Cabinets
Energy Storage Cabinets
Discover Our Products

The cabinet can be made of 304 stainless steel or high-quality cold-rolled steel, both of which undergo a strict anti-corrosion treatment. This ensures excellent resistance to rust and corrosion, allowing long-term stable performance even in demanding industrial conditions.

Some models reach a protection level of IP54 or higher, effectively preventing dust intrusion and resisting water spray, ensuring that internal electrical components operate reliably in dusty or humid environments.

The internal layout is well-structured and spacious, providing standardized mounting positions that are compatible with international brands such as Siemens and Schneider, meeting various wiring and installation requirements.

Yes. Comprehensive customization services are available, allowing you to specify the dimensions, internal layout, and functional modules of the console cabinet to suit your particular application needs.
