Power Distribution Panels

XGL Series

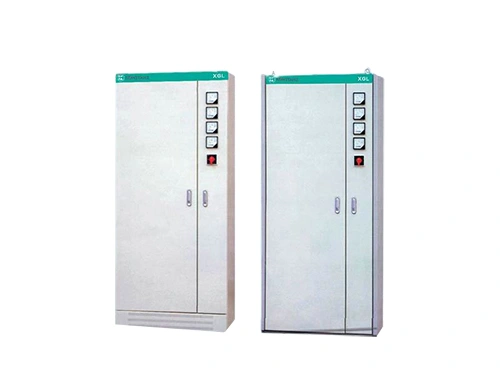

Electrical Control Panel

• Main Circuit Rated Voltage: AC 380V
• Auxiliary Circuit Rated Voltage: AC 220/380V
• Rated Frequency: 50–60Hz
• Rated Insulation Voltage: 660V
• Rated Current: ≤1250A

Request a Quote

The XGL Electrical Control Panel is designed for power plants, industrial enterprises, and high-rise buildings. It is suitable for low-voltage power distribution systems with AC 50 Hz frequency, rated voltage of 380 V or 660 V, and rated current up to 1250 A. The panel can be configured for three-phase three-wire, four-wire, or five-wire systems, supplying power to both lighting and motor equipment. It can also be used for controlling squirrel-cage and wound-rotor motors in low-voltage control systems.
This control panel stands out for its flexible distribution schemes, modular combination options, high practicality, and innovative structure, making it suitable for various industrial and building applications.

Compliant with IEC 61439-1: 2020 and GB 7251.1—2023 standards.

• The ambient air temperature shall not exceed +40 °C, shall not be lower than −10 °C, and the average temperature within 24 hours shall not exceed +35 °C.
• The altitude of the installation site shall not exceed 2000 m.
• The surrounding air shall be clean. The relative humidity shall not exceed 50 % at the highest temperature of +40 °C; higher humidity is permissible at lower temperatures, e.g., 90 % at +20 °C. Moderate condensation caused by temperature changes is acceptable.
