Power Distribution Panels

JXF Series

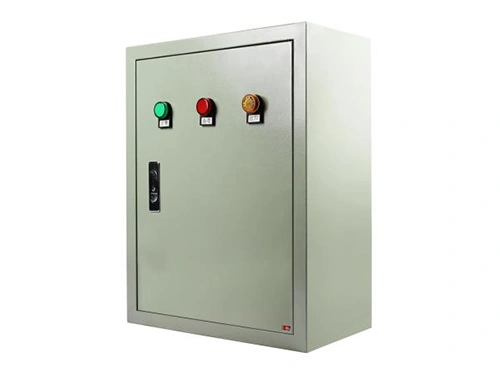

Power Distribution Box

• Rated Voltage (VAC): 220 / 380
• Corrosion Protection Grade: WF2
• Rated Current (A): 10–100A
• Explosion-Proof Mark: ExdeIICT4 / DIPA20 / TA, T4
• Number of Circuits: 4, 6, 8, 10, 12
• Circuit Breaker Brand & Model: Schneider / ABB / Siemens / CHNT / Delixi
• Protection Grade: IP65
• Enclosure Material: Powder-coated carbon steel

All the above parameters can be customized according to customer requirements.

The JXF power distribution box is part of the temporary site power box or power and lighting distribution series, typically used as terminal distribution equipment. The JXF series is designed for a service life of 8–10 years, which can be extended up to 15 years through optimized load management and regular maintenance. The standard JXF distribution box supports a maximum current of 250 A, with the power model expandable to 400 A, suitable for single-phase 240 V or three-phase systems of 450 V and below.

• Civil use: Suitable for lighting distribution and small power control in hotels, apartments, high-rise buildings, shopping malls, and schools, such as corridor lighting and air-conditioning socket circuits.
• Industrial use: Applied in factories, ports, stations, airports, warehouses, and hospitals for power distribution and equipment control, including motor start-stop protection and power allocation for production lines.
